filter
Inline type
sanitary type
ACF series
Maximum working pressure:1MPa
Automatic cleaning filter
*Precautions for use
Before replacing the element, release the residual pressure inside the case.
Please consult us as it may not be suitable for fluids with particularly high viscosity.
Features
- Contaminants captured by the inner mesh are discharged with a valve.
- Two-stage filtration structure extends filter life.
- The progress of clogging is detected by a differential pressure sensor.
- Easy management with optional controller.
- Easy to disassemble and clean parts.
Specification
Filter specifications
| Fluid used | Fluids that do not corrode SUS304/SUS316, such as water and oil | |
|---|---|---|
| Maximum working pressure | 1MPa | |
| Operating temperature (with sensor) | -20℃～90℃(No condensation) | |
| Operating temperature (without sensor) | NBR | -20～120℃ |
| FKM (Byton) | 0～150℃ | |
| EPDM | -20～120℃ | |
| FFKM(Perflo) | 0～150℃ | |
Material
Wetted parts material:SUS304/SUS316

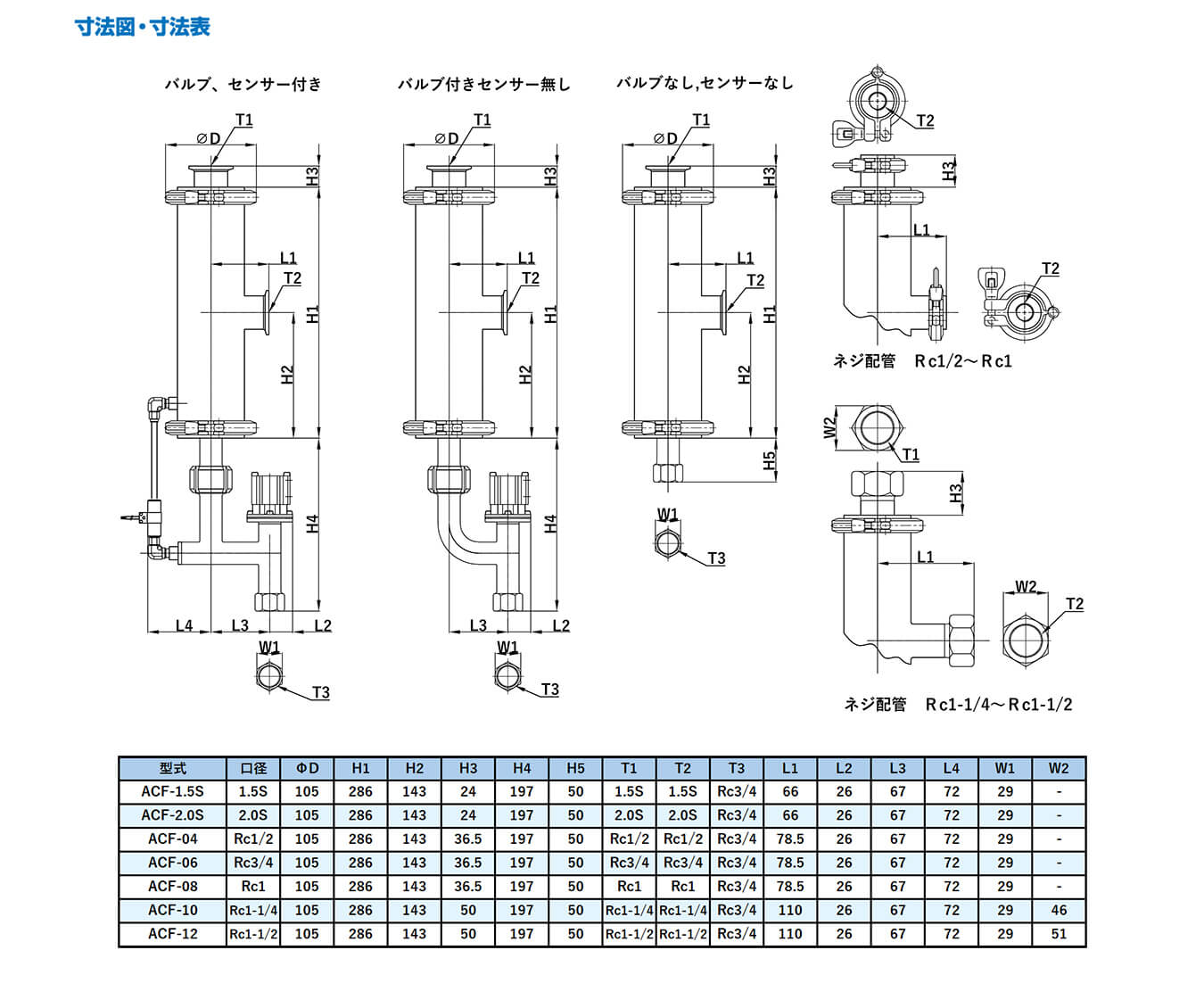

Blueprint
